Ink-Bird ITC1000 Temperaturkontroll

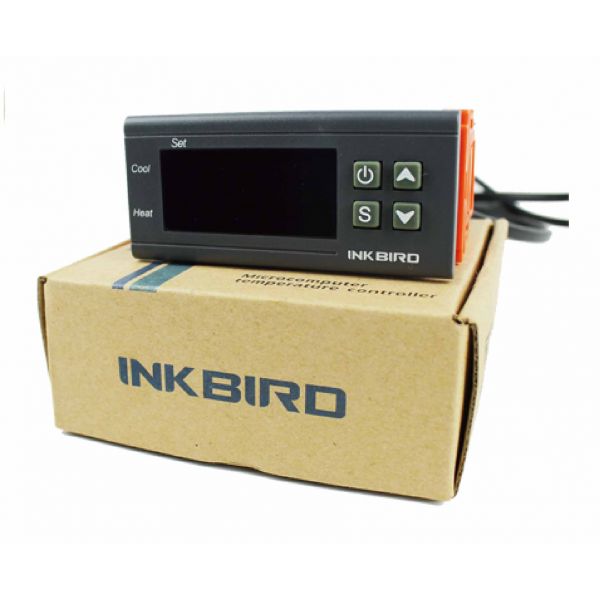

The InkBird ITC-1000   All-Purpose Temperature Controller
2 stage temperature controller, F/C degree display, Thicker temperature probe and wire, Audible alarm

The ITC-1000F is a 2 stage temperature controller and it can heat and cool at the same time using 2 different sides of a standard electrical relays. In heat mode, the controller switches on when the temperature is below the SET temperature and switches off when above it. In cool mode, it switches on when the temperature is above the SET temperature and switches off when below it. The ITC-1000F can switch between Celsius and Fahrenheit display.

It can be used as Over-temperature protection and automatic temperature control system for various electric appliances such as equipment for home-brew, aquarium, pet breeding, incubation, BBQ, seedling heat mats, oven temperature control, terrestrial heat control, constant temperature cycle of heating pump, culture fermentation, accelerating germination, electric radiator, electric oven, etc.

Features

• Fahrenheit and Celsius Display Can Be Choose;
• More User-friendly Operating;
• Switch Between Cooling and Heating Modes;
• Control the Temperature by Setting the Temperature Set Value and the Difference Value;
• Temperature Calibrating;
• Refrigerating Control Output Delay Protection;
• Alarm When Temperature Exceeds the Limit or When Sensor Error;

Specifications

• Temperature Control Mode :Switch Between Cooling and Heating

• Temperature Measuring Range : -50~99°C / -50～210 ° F

• Temperature Resolution: 0.1 ° C / 0.1° F ​

• Measuring Accuracy: ±1°C (-50 ~ 70°C) / ±1°F (-50 ~ 160° F)

• Ambient Temperature: 0~ 60° C

• ​​Power Supply: 110Vac/220Vac 50Hz/60Hz, 12Vdc

• ​​Power Consumption: <3W

• Over-temperature Alarm and Sensor Error Alarm

• Relay Contact Capacity: Cooling (10A/250VAC)​

• Heating (10A/250VAC)

• Storage Temperature: -30 ° C~ 75 ° C​

• Storage Humidity: 20~85% (No Condensate) ​

• Front Panel Size: 75(L)*34.5(W)mm
• Mounting Size: 71(L)*29(W)mm
• Product Size：75(L)*34.5(W)*85(D)mm ​
• Net Weight: 200g​
• Gross Weight: 280g​
• Warranty: 12 month ​
• 1x ITC-1000F temperature controller;
• 1x Manual;
