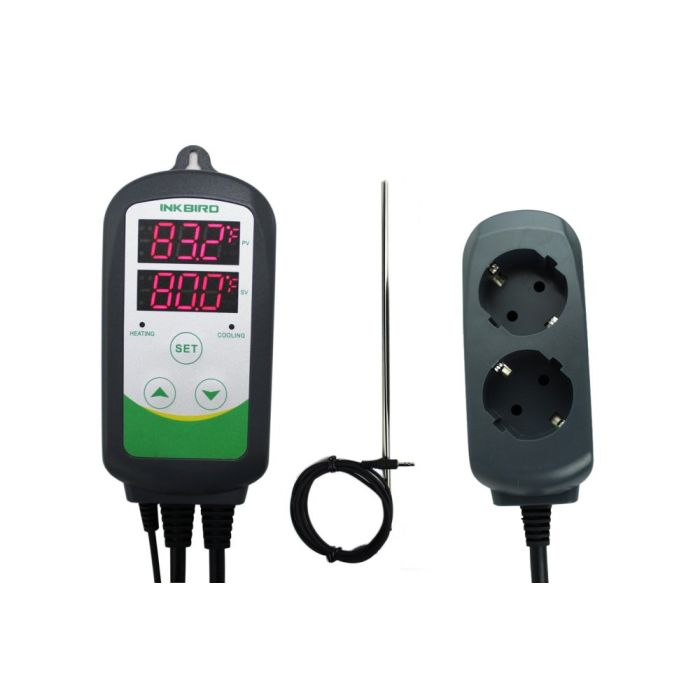

Universaltermostat Inkbird ITC-308

Inbird ITC-308 är en "plug and play" universaltermostat med EU-plugg för såväl värme som kyla. Slipp lödning, skarvar och kalibrering. Känslighet +/- 1 grad.

Observera att sladden till temperaturgivaren ej är livsmedelsklassad. Använd med en s.k. thermowell vid mäskning.

Specification:

• Plug and play design, easy to use;
• Dual relay output, be able to connect with refrigeration and heating equipment at the same time;
• Support reading with Centigrade or Fahrenheit unit;
• Maximum output load: 1000W(110V)/2000W(220V);
• Dual display window, be able to display measured temperature and set temperature at the same time;
• Temperature calibration;
• Compressor delay protection for refrigeration control
• High and low temperature alarms are available;
• Over-temperature and sensor fault alarm
• Heating/Cooling differential function could be set separately for refrigeration and heating to protect temperature controller from violent change.

Technical details:

• Temperature Control Range : -50~99 °C / -58~210 ° F
• Temperature Resolution: 0.1 ° C / 0.1° F Temperature Accuracy: ±1°C (-50 ~ 70°C) / ±1°F (-50 ~ 160° F)
• Temperature Control Mode :On/Off Control, Heating and Cooling
• Input Power: 100 ~240VAC, 50Hz/60Hz
• Temperature Control Output: Max. 10A, 100V ~240V AC
• Buzzer Alarm: High and Low Temperature Alarm
• Sensor Type: NTC sensor (Including)
• Sensor Length: 2m / 6.56ft
• Relay Contact Capacity:Cooling (10A, 100-240VAC)
• Heating (10A, 100-240VAC)
• Input Power Cable Length: 1.5m (5ft)
• Output Power Cable Length: 30cm (1ft)
• Dimension Body: 140x68x33mm (5.5x2.7x1.3inch)
• Socket: 85x42x24mm(3.3x1.7x1inch)
• Ambient Temperature: -30~ 75 ° C / -22~ 167 ° F
• Storage Temperature: -20~ 60 ° C / -4~ 140 ° F
• Humidity 20~85% (No Condensate)
• Warranty: 1 Year
